Clinical History, Examination and Blood Test Results

  • Discussion case 6 is a 68-year old gentleman who presented with an intoeing of his gait. This was on a background of a modular total right hip replacement. He had no pain at presentation with good function of the joint.

    • Gait intoeing is an early sign of abductor muscle damage due to unopposed action of tensor fascia lata.

  • To investigate the muscle mass and any changes, an MRI was requested - See below.


Imaging Results

PRE-OP RADIOGRAPHS

Scroll through the images

PRE-OP MRI

Scroll through the images

These pre-operative radiographs show a femoral stem with a modular neck. There are no obvious abnormalities related to the right hip joint seen on these plain film radiographs.

The pre-operative MRI demonstrated a subtle pseudotumour anteriorly and a second thick-walled pseudotumour surrounding the greater trochanter - Coming soon.


Diagnosis

  • Adverse reaction to metal debris caused by wear of the modular neck from the femoral stem. This led to pseudotumour formation and surrounding soft tissue damage.


Treatment

CT planned revision of the left hip.

  • Posterior approach

  • Severe adverse reaction to metal debris with threatening gluteus medius

  • 5 cultures sent and histology of the capsule sent

  • Acetabular component

    • The cup was retained

  • Femoral component

    • The femoral stem was explanted with flexible osteotomies, midas rex and symmetry extractor

    • Calcar crack with extraction requiring 1 cable

    • New femoral stem implanted – Long stem Corail 14 KHO + 5 with a 36mm ceramic head

  • This was stable. The leg lengths were equal.

  • Wash ++

  • Closure with vicryl, monocryl and glue

The post-operative plan was partial weight bearing for 6-weeks with crutches and clexane.


Imaging Outcomes

INTRA-OPERATIVE PHOTO

Click on the image for a closer look

EXPLANTED COMPONENTS

Click on the image for a closer look

Components image square.png

This intra-operative image demonstrates the destruction caused by the metal ions released from the taper junction between the femoral stem and the modular neck.

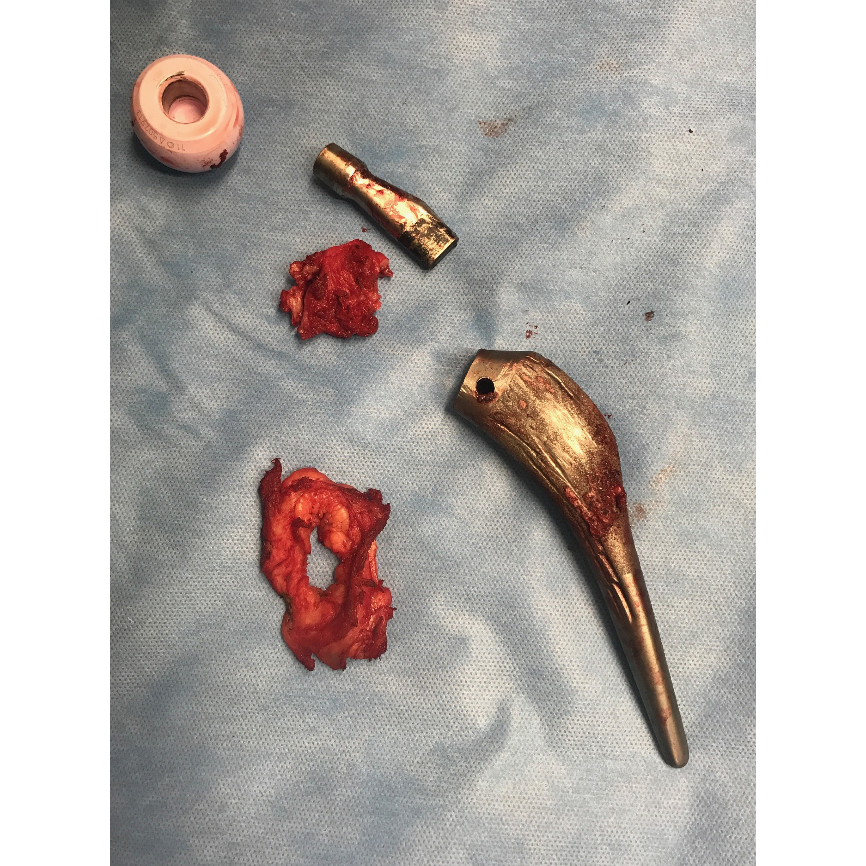

Areas of corrosion can be seen on the modular femoral neck (the black debris). Note the marks in the femoral stem, made at the time of explantation.



POST-OP RADIOGRAPHS

Click on the image for a closer look


Post-op AP.png


Post-operative radiograph with the revision stem in situ.



Clinical Outcomes

  • He returned to clinic at one-year post-op able to walk as far as 6-miles. He is a very active gentleman and is able to continue doing his daily routine of exercises.

  • The wound had healed well and examination of the joint was normal.


Learning Points

  • Modular neck hips (aka dual taper) with cobalt-chromium necks produce metal debris from corrosion between the neck and the titanium stem. The stem is always titanium for a modular neck hip.

  • The metal debris can destroy muscle and tendon.

  • MRI can see this soft tissue destruction and revision surgery should be contemplated before the tendons pull off of the trochanter and before the muscle is damaged: surgery after this results in a very poor outcome.

  • All designs of modular neck hips, that have a cobalt-chromium neck, are vulnerable to this problem.

  • Further reading;
