Clinical History, Examination and Blood Test Results

  • Case one is a 76-year-old lady who presented with pain in her right hip, which had been progressively deteriorating over the last year and starting to prevent her from driving.

  • She had a previous nephrectomy for a benign tumour, but otherwise she was fit and healthy.

  • Examination revealed a good range of lumbar spine movements but a reduced range of right hip movements which were irritable. She had pain in her right groin throughout the examination.


Imaging Results

PRE-OP RADIOGRAPH

Click on the image for a closer look



PRE-OP CT

Scroll through the images

This is anteroposterior radiograph showing end stage osteoarthritis of the right hip causing this patient pain and discomfort.

Thin slice CT scans are used to produce a 3D model of the patient's bony anatomy to allow for the PSI jigs to be produced. Slices through the knee are also required to allow for planning.


Diagnosis

  • A painful right hip secondary to end stage osteoarthritis requiring a total hip replacement using patient specific instrumentation.


Treatment

  • To optimise the implant position, the patient underwent a CT scan to plan her procedure. From the CT scan, a 3D virtual model of her pelvis and right proximal femur was produced. This was used to plan the procedure virtually.

  • From these models and the plan, patient specific instruments were designed and produced to guide the surgeon to aid in obtaining the optimal position of both the femoral and acetabular component.

  • The jigs are explained below.



FEMORAL MODEL AND JIG

Click on the image for a closer look

This is an image of a PSI femoral jig sat on a 3D printed model of the patient’s proximal femur. This jig is designed for the posterior surgical approach, and is also complementary to the patient’s anatomy. It is used to aid in the cutting of the femoral neck, to ensure the position and the angle of the neck cut is correct.

ACETABULAR MODEL AND JIG

Click on the image for a closer look

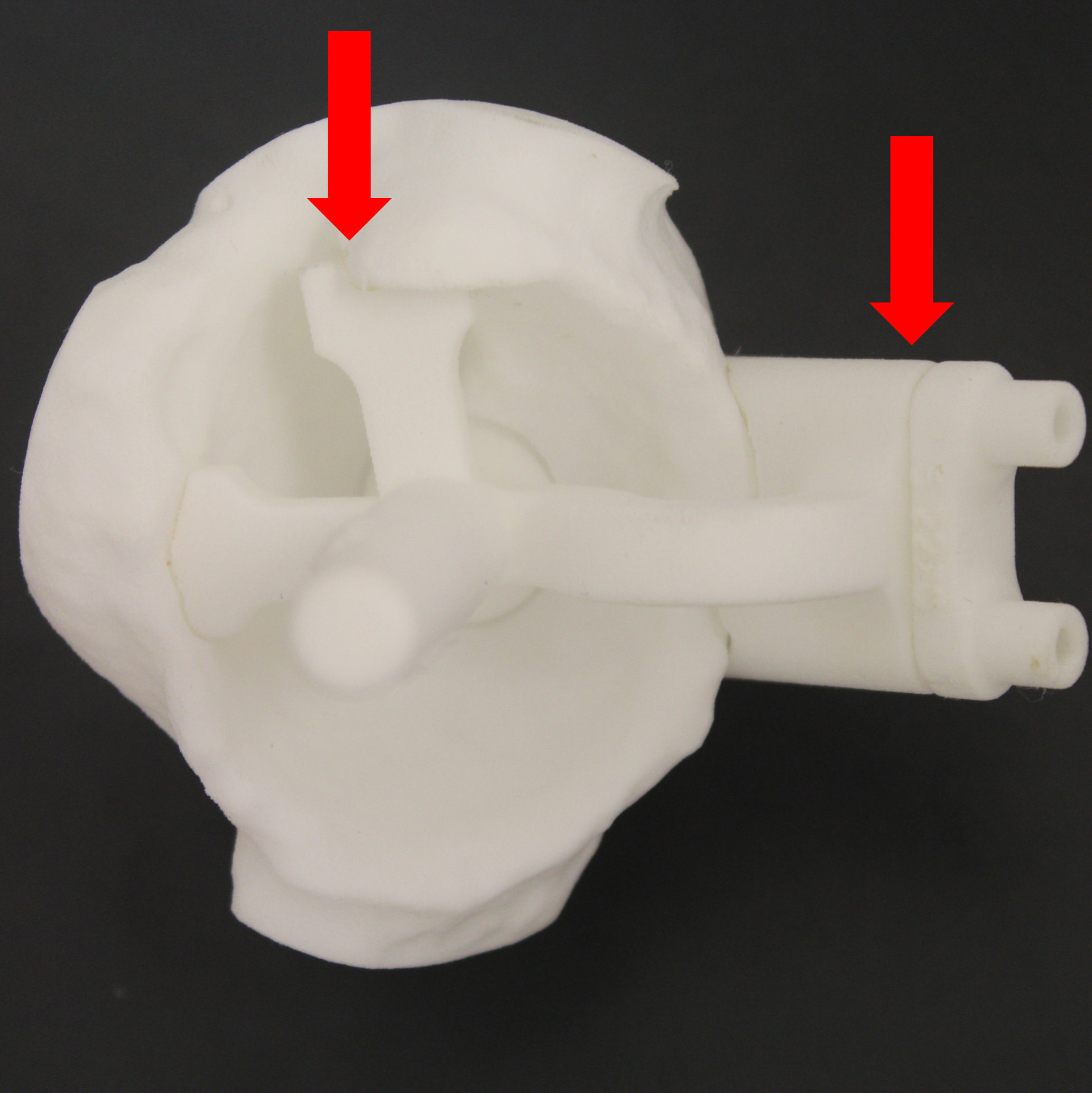

This is a photo of a PSI acetabular jig sat in a 3D printed model of the patient’s acetabulum. The jig is custom made to fit into the patient’s own acetabulum. The left hand arrow shows the points where the jig is complimentary to the patient’s anatomy to get an exact fit. The right hand arrow shows the drilling guide. When the jig is sat correctly in the patient’s acetabulum, the drilling guide is used to place two pins onto the pelvic bone. A visual guide (pictured below) is then slid over these pins and aids the surgeon in getting the reaming angle correct.



INTRAOPERATIVE USE - FEMORAL JIG

Scroll through the images

This series of three photos shows the intraoperative use of the femoral jig. Image one shows the placement of the femoral jig on the posterior of the proximal femur. Image two shows the jig, pinned in place, being used as a cutting guide to remove the femoral head. Image three shows the femoral head being removed with the jig attached.

INTRAOPERATIVE USE - ACETABULAR JIG

Scroll through the images

 This series of three photos shows the intraoperative use of the acetabular jig. Image one demonstrates the acetabular model and jig being used to visualise the positioning of the jig within the acetabulum. Pins are then drilled into the acetabular bone using this jig. Image two shows the visual guidance bar being slid over the two precisely positioned pins. Image three shows the surgeon lining the trajectory of the cup with the visual guidance bar to ensure optimal positioning.

  • Key surgical steps

    • CT planned PSI total hip replacement using a posterior approach

    • The femoral jig is used to guide the femoral cut, to remove the femoral head

    • The acetabular jig is used to guide the surgeon in reaming for the planned socket, to maintain the correct trajectory to obtain an optimal position


Imaging Outcomes

POST-OP RADIOGRAPH

Click on the image for a closer look

This post-operative radiograph shows the primary right sided total hip replacement in a good position after implantation using PSI.



Clinical Outcome

  • He is extremely pleased with the outcome of his surgery, as it has vastly reduced the pain in his right hip.

  • The left hip will be revised in the near future.


Learning Points

  • 3D CT planning is essential in complex cases.

  • The use of patient specific implants can aid the surgeon to obtain the optimal implant position. This adds a few minutes to the operation, but if the optimal position is achieved it will possibly add years to the life span of the implant.
